NEX Cable
AC Charger 7.50 kg

NEX Cable

Beschikbaar op Aanvraag / Offerte
Overzicht

Slim 22 kW AC laadstation (NEX G2, Zilver) met geïntegreerde 7,5m Type 2 laadkabel, 4G met data, Wi-Fi, BLE, Daisy-Chain LAN, OLED-scherm, RFID, HDLM, MID-meter en optionele ISO 15118 Pro upgrade.

Specificaties
  • Laadvermogen: 22 kW (3-Fase)
  • Aansluiting: Geïntegreerde 7,5m T2 Kabel (Optioneel 5m / Shutter)
  • Autorisatie: RFID, App, Optioneel ISO 15118 Plug & Charge (Pro)
  • Backend Protocol: OCPP 1.6J / 2.0.1 (4G met Data, Wi-Fi, BLE, Daisy-Chain LAN)
  • Functies: HDLM Load Management, OLED-scherm, MID Gecertificeerd
Compatibele Opties & Accessoires
17

Stel dit product samen met bijpassende montagepalen, kabelbeheer of beveiligingsaccessoires:

Pro Upgrade: ISO 15118 Plug & Charge Add-on Board Add-on Board Pro ISO 15118 9800000000001

Upgrades standard NEO or NEX G2 charger to Pro edition with ISO 15118 Plug & Charge hardware board (NEO Pro / NEX Pro).

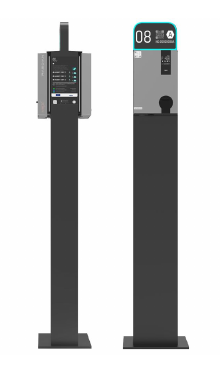

Pole X Built-in Type A RCBO (C40, 3P+N, 30mA)
Pole X Built-in Type A RCBO (C40, 3P+N, 30mA) Electrical Protection RCBO 3P+N 9037000000020

Integrated Type A RCBO x1 (C40, 3P+N, 30mA) overcurrent and residual current breaker for Pole X pedestals.

PXB-APO Payter Apollo Payment Terminal Kit (for Pole X-B)
PXB-APO Payter Apollo Payment Terminal Kit (for Pole X-B) Payment Terminal Payter Apollo POS 9037000000002

Payter Apollo contactless payment extension kit for Pole X-B (NEO/NEX), including Payter Apollo terminal, 12V DC power supply, 4G antenna, and mounting bracket.

MCH-G-1 Space Grey Housing Kit (Front Cover & Backplate)
MCH-G-1 Space Grey Housing Kit (Front Cover & Backplate) Housing Accessory Space Grey 9028000010001

Replacement/upgrade Space Grey housing kit for NEO and NEX G2 chargers (front cover and backplate, 1 set per package).

Factory Customized Housing Color (MOQ 500)
Factory Customized Housing Color (MOQ 500) Factory Customization MOQ 500 TCG-OPT-HOUSING-COLOR

Factory custom casing color finish for NEO / NEX G2 (default: Silver; custom colors available for orders with MOQ 500).

Pole X-B1 Commercial Pedestal (Single/Dual Ready, incl. Bracket & Hook)
Pole X-B1 Commercial Pedestal (Single/Dual Ready, incl. Bracket & Hook) Mounting Option Commercial Pole 9037000020000

Heavy-duty pedestal for NEO / NEX installation (expandable to back-to-back dual with Pole X-B bracket), including 1x mounting bracket and 1x cable hook.

Pole X-B Dual Back-to-Back Mounting Bracket & Cable Hook
Pole X-B Dual Back-to-Back Mounting Bracket & Cable Hook Mounting Option Dual Upgrade 9037000002000

Additional NEO / NEX mounting bracket and cable hook for back-to-back dual installation on Pole X-B1.

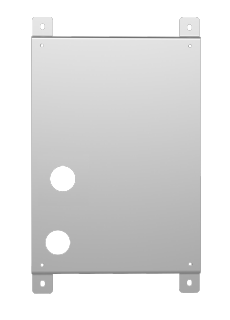

NBK-G Wall Mounting Bracket for Uneven Surfaces
NBK-G Wall Mounting Bracket for Uneven Surfaces Mounting Option Wall Bracket 9007000000001

Reinforced wall adapter bracket for mounting NEO or NEX chargers on uneven masonry or facade surfaces.

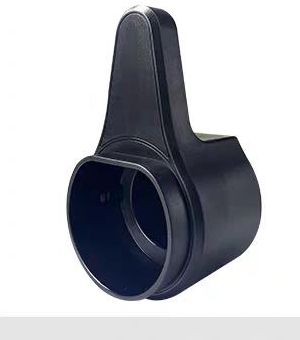

CHOOK-B Cable Hook (Black)
CHOOK-B Cable Hook (Black) Cable Management Cable Hook 9005000000001

Wall or pedestal EV charging cable storage hook in matte black finish.

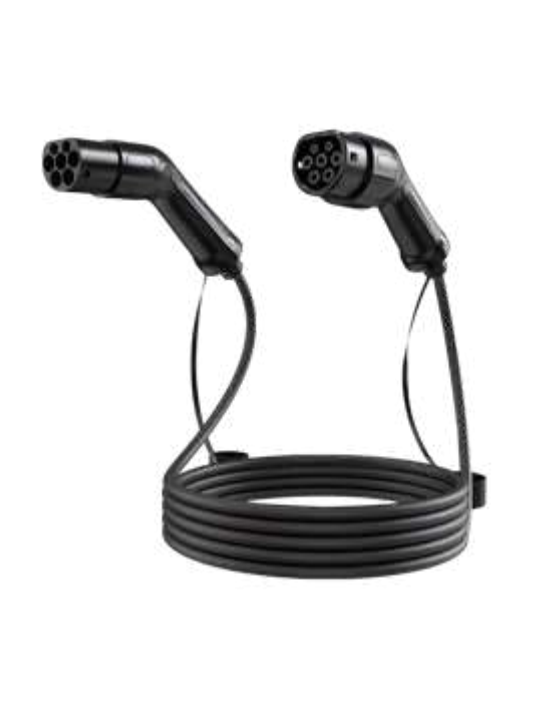

NEX 22kW Optional 5m Type 2 Cable (instead of 7.5m)
NEX 22kW Optional 5m Type 2 Cable (instead of 7.5m) Cable Management 5m Cable Option 980200000002

Factory customization configuring NEX 22kW Cable with a 5m Type 2 cable instead of the default 7.5m cable.

NEX 22kW 7.5m Type 2 Cable with Shutter Upgrade
NEX 22kW 7.5m Type 2 Cable with Shutter Upgrade Cable Management 7.5m Shuttered Cable 9802000000200

Factory upgrade changing NEX 22kW 7.5m Type 2 cable to a 7.5m Type 2 cable with safety shutter.

SCK-1P-1CT Solar Charging Kit (1P Meter Unit + 1x 80A CT Clamp)
SCK-1P-1CT Solar Charging Kit (1P Meter Unit + 1x 80A CT Clamp) Load Balancing 1P Solar Kit 9027000000011

SC Kit 1P + 1CT solar charging and dynamic load balancing kit with 1-phase meter unit and 1x 80A CT clamp (1:3000) for NEO / NEX.

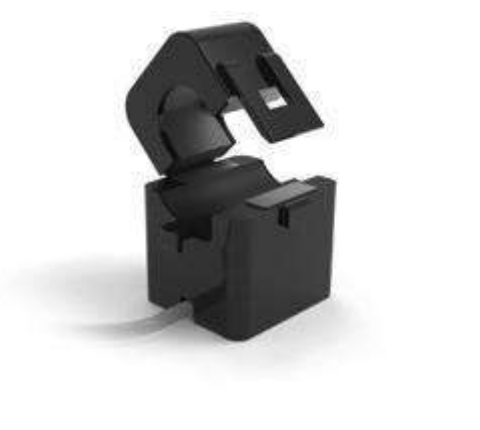

NCT-100A Split-Core CT Clamp (100A, 1:1000, 1m Cable)
NCT-100A Split-Core CT Clamp (100A, 1:1000, 1m Cable) Load Balancing 100A CT 9000000000001

Split-core current transformer clamp (100A, ratio 1:1000, 1m twisted pair cable) for NEO and NEX load balancing.

NCT-50A Split-Core CT Clamp (50A, 1:1000, 1m Cable)
NCT-50A Split-Core CT Clamp (50A, 1:1000, 1m Cable) Load Balancing 50A CT 9000000000002

Split-core current transformer clamp (50A, ratio 1:1000, 1m twisted pair cable) for NEO and NEX load balancing.

HDK-3CT-100A Wireless HDLM Controller Kit (incl. 3x 100A CT Clamps)
HDK-3CT-100A Wireless HDLM Controller Kit (incl. 3x 100A CT Clamps) Load Balancing HDLM 100A 9027000000044

HDLM KIT 100A wireless dynamic load management controller for NEX and GEMINI Pro 2 stations, including 3x 100A CT clamps (MSRP €299 / Dist. €169).

HDK-3CT-400A Wireless HDLM Controller Kit (incl. 3x 400A CT Clamps)
HDK-3CT-400A Wireless HDLM Controller Kit (incl. 3x 400A CT Clamps) Load Balancing HDLM 400A 9027000000054

HDLM KIT 400A commercial wireless dynamic load management controller for NEX and GEMINI Pro 2 stations, including 3x 400A CT clamps (MSRP €379 / Dist. €199).

HDK-3CT-600A Wireless HDLM Controller Kit (incl. 3x 600A CT Clamps)
HDK-3CT-600A Wireless HDLM Controller Kit (incl. 3x 600A CT Clamps) Load Balancing HDLM 600A 9027000000064

HDLM KIT 600A heavy-duty wireless dynamic load management controller for NEX and GEMINI Pro 2 hubs, including 3x 600A CT clamps (MSRP €449 / Dist. €249).

Geselecteerde Opties (0): +€0.00
Offerte Aanvragen / Informeren Terug naar Producten
