Reliable, Modular & High-Yield Stationary Storage

The Easyway UNIV5200 rack-mounted lithium iron phosphate (LiFePO4) battery is the definitive choice for high-performance backup power and solar self-consumption. Featuring 5.22 kWh gross capacity and 4.91 kWh usable energy per module, it delivers rock-solid resilience for residential and commercial sites.

Scalable to 83.52 kWh

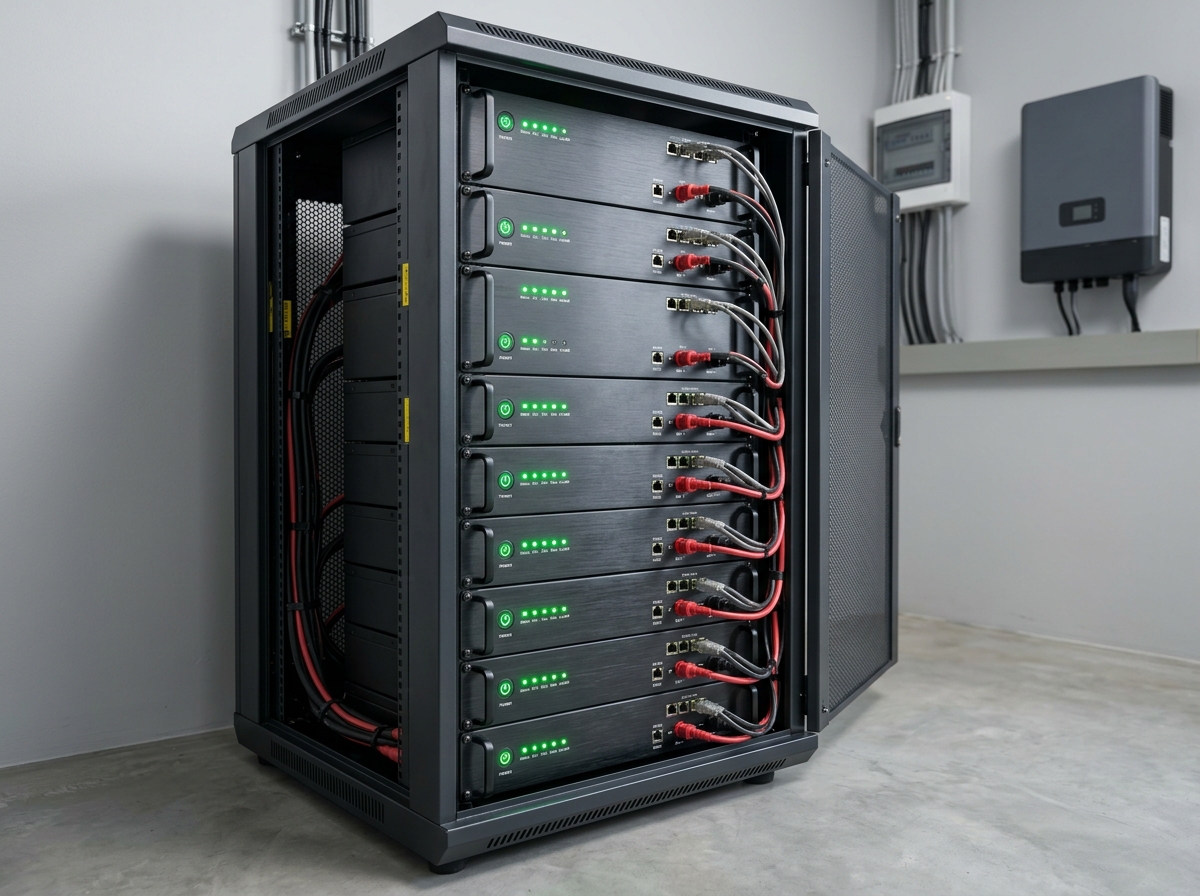

Parallels up to 16 modules effortlessly inside standard 19-inch server rack cabinets.

Superior Smart BMS

Continuous cell telemetry, active balance circuitry, and native CAN/RS485 handshake.

Advanced Features & Solis Hybrid Compatibility

2026 EW-5200-V1.0 [EN]

Inherently Safe LiFePO4 Cells with 8,000+ Cycles

Utilizing premium lithium iron phosphate chemistry, the Easyway UNIV5200 provides complete peace of mind against thermal runaway. The integrated Battery Management System safeguards voltage, current, and temperature parameters to ensure over 15 years of uninterrupted service.

Exceptional Cycle Life (≥ 8,000 Cycles): Designed for 15+ years of continuous daily operation at 90% recommended Depth of Discharge (DOD).
High Continuous Power: 80A recommended charging/discharging current and 100A maximum continuous output to support high domestic peak loads.
Plug & Play Solis Inverter Link: Pre-programmed CAN-bus and RS485 communication protocols match Solis S6 hybrid and retrofit inverters out of the box.
Standard 19" 3U Rack Form Factor: Compact 442 x 135 x 480 mm dimensions at 43 kg weight ensure tidy, professional installation.

BMS Protective Features & Operating Specifications

Multi-tier autonomous protection: Over-voltage, under-voltage, over-current, short-circuit, and multi-point temperature monitoring.
Broad environmental rating: Charge operational range 0°C to 55°C, discharge operational range -20°C to 60°C.
Natural convection cooling with zero fan noise, rated IP20 indoor up to 4,000 meters altitude.

Global Safety Certifications: Fully certified under CE, Cell UL 1973, IEC 62619, and UN38.3 hazardous materials transport homologation.

UNIV5200 Detailed Technical Specifications

Parameter	Specification	Operating Range	Application
Energy & Voltage	Capacity	Total Energy: 5.22 kWh	Usable: 4.91 kWh (90% DOD)	102 Ah Nominal
16S cell series configuration 90% recommended Depth of Discharge Parallel scalability up to 16 modules	Voltage (DC)	Nominal: 51.2 Vd.c.	Range: 44.8 ~ 57.6 Vd.c.	48V Low Voltage
Current & Life Expectancy	Operating Current	Recommended: 80A / 80A (C/D)	Max. Continuous: 100A / 100A	Short-circuit protection
BMS Protocol: CAN and RS485 Operating Temp: Charge 0~55°C, Discharge -20~60°C Natural cooling, IP20, weight 43 kg	Life Expectancy	≥ 8,000 Cycles (@ 25°C)	Design Life: 15+ Years	10-Year Manufacturer Warranty

Parameter

Specification

Operating Range

Application

Energy & Voltage

Capacity

Total Energy: 5.22 kWh

Usable: 4.91 kWh (90% DOD)

102 Ah Nominal

16S cell series configuration
90% recommended Depth of Discharge
Parallel scalability up to 16 modules

Voltage (DC)

Nominal: 51.2 Vd.c.

Range: 44.8 ~ 57.6 Vd.c.

48V Low Voltage

Current & Life Expectancy

Operating Current

Recommended: 80A / 80A (C/D)

Max. Continuous: 100A / 100A

Short-circuit protection

BMS Protocol: CAN and RS485
Operating Temp: Charge 0~55°C, Discharge -20~60°C
Natural cooling, IP20, weight 43 kg

Life Expectancy

≥ 8,000 Cycles (@ 25°C)

Design Life: 15+ Years

10-Year Manufacturer Warranty

Recommended and max continuous operating current applies for cell temperatures between 10°C and 40°C. Certifications: CE, UL 1973, IEC 62619, UN38.3.

5.22 kWh

Per module

8,000+ Cycles

Long life expectancy

16x Parallel

Up to 83.5 kWh

10 Years

Full warranty

Easyway 5200 Battery (UNIV5200)
